Gauge Glass & Body Option 1) Gauge Type Magnetic Float type Reflex type Transparent type Tubular type (예전에 사용되던 type으로 지금은 Reflex, Transparent로 대체되어 잘 사용되지 않음.) Large chamber type Welding Pad type 상세 내용은 하단 링크 참조 유체 특성을 모르거나 Type이 결정되지 않은 경우에는 Reflex type으로 사용한다.
[계장/Level] Level Gauge Type Magnetic Float Type 1) 구조 및 원리 Body 안에 Magnetic Float가 들어있고 Level 이 변함에 따라 ... blog.naver.com 2) C-C (Center to Center) 및 V-L (Visual Length) C-C : Connection 간 간격. (Upper Nozzle과 Lower Nozzle 간격) V-L : 실제 확인...

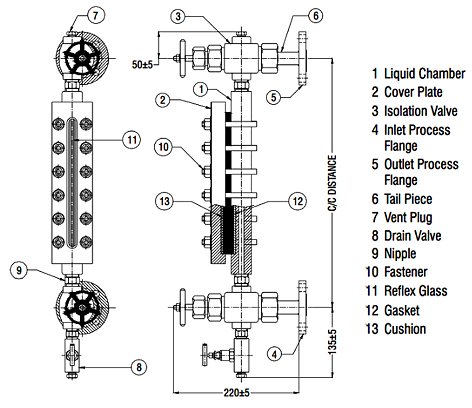

![[계장/Level] Level Gauge Specification](https://mblogthumb-phinf.pstatic.net/MjAyMzA0MjRfMTIy/MDAxNjgyMzM4NTU2MDU5.vhorjNoNwYHGGj0PUlemsIbyEQ_yfs33LgvHfsitBiMg.oRdJEMRKNfSOYWxnmQqwmYTRejzV-EaO5w3vLs-Nz1Qg.PNG.ahrah23/Image.png?type=w2)
#
BallCheck
#
RenewableSeat
#
OffsetValve
#
NonfrostAcryl
#
MicaShield
#
LevelGaugeSpec
#
LevelGaugeOption
#
LevelGaugeAccessory
#
Illuminator
#
GaugeValve
#
GaugeGlass
#
GaugeBody
#
UnionBonnet
